Self Hosting

In this guide, we will walk you through the process of setting up a self-hosted environment. Self-hosting allows you to have full control over your applications and data. It's a great way to ensure privacy, control, and customization.

We will cover two main options for setting up your self-hosted environment: using a cloud server or using your desktop. For the cloud server, we will use an AWS EC2 instance. For the desktop, we will use Docker to create a local environment.

Let's get started!

Setting up Docker Environment

Option 1 - Using Cloud Server

Best way to start is to create EC2 machine on AWS. It must have minimum of 2vCPU and 4GB RAM.

Run the below command to install docker engine.

curl -fsSL https://get.docker.com | sh -

---

Option 2 - Using Desktop

For Mac

1. Download Docker Desktop for Mac from the Docker Hub.
2. Double-click the downloaded `.dmg` file and drag the Docker app icon to the Applications folder.
3. Open Docker Desktop from the Applications folder. You might be asked to provide your system password to install additional software.

For Windows:

1. Download Docker Desktop for Windows from the Docker Hub.
2. Run the installer and follow the instructions. You might be asked to enable Hyper-V and "Containers" Windows features.
3. Open Docker Desktop. You might be asked to log out and log back in, or restart your machine, for changes to take effect.

After installation, you can verify the installation by opening a terminal (Command Prompt on Windows, Terminal app on Mac) and running the command docker --version. This should display the installed version of Docker.

---

Installing Plane

Installing plane is a very easy and minimal step process.

Prerequisite

• Docker installed and running
• OS with bash scripting enabled (Ubuntu, Linux AMI, macos). Windows systems need to have gitbash
• User context used must have access to docker services. In most cases, use sudo su to switch as root user
• Use the terminal (or gitbash) window to run all the future steps

Downloading Latest Release

mkdir plane-selfhost

cd plane-selfhost

For Docker Compose based setup

curl -fsSL -o setup.sh https://github.com/makeplane/plane/releases/latest/download/setup.sh

chmod +x setup.sh

For Docker Swarm based setup

curl -fsSL -o setup.sh https://github.com/makeplane/plane/releases/latest/download/swarm.sh

chmod +x setup.sh

---

Proceed with setup

Above steps will set you ready to install and start plane services.

Lets get started by running the ./setup.sh command.

This will prompt you with the below options.

Docker Compose

Select an Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 1

For the 1st time setup, type "1" as action input.

This will create a folder plane-app and will download 2 files inside that

• docker-compose.yaml
• plane.env

Again the options [1-8] will be popped up, and this time hit 8 to exit.

Docker Swarm

Select an Action you want to perform:
   1) Deploy Stack
   2) Remove Stack
   3) View Stack Status
   4) Redeploy Stack
   5) Upgrade
   6) View Logs
   7) Exit

Action [3]: 1

For the 1st time setup, type "1" as action input.

This will create a create a folder plane-app and will download 2 files inside that

• docker-compose.yaml
• plane.env

Again the options [1-7] will be popped up, and this time hit 7 to exit.

---

Continue with setup - Environment Settings

Before proceeding, we suggest used to review .env file and set the values. Below are the most import keys you must refer to. You can use any text editor to edit this file.

LISTEN_HTTP_PORT - This is default set to 80. Make sure the port you choose to use is not preoccupied. (e.g LISTEN_HTTP_PORT=8080)

WEB_URL - This is default set to http://localhost. Change this to the FQDN you plan to use along with LISTEN_HTTP_PORT (eg. https://plane.example.com:8080 or http://[IP-ADDRESS]:8080)

CORS_ALLOWED_ORIGINS - This is default set to http://localhost. Change this to the FQDN you plan to use along with LISTEN_HTTP_PORT (eg. https://plane.example.com:8080 or http://[IP-ADDRESS]:8080)

There are many other settings you can play with, but we suggest you configure EMAIL SETTINGS as it will enable you to invite your teammates onto the platform.

---

Continue with setup - Start Server (Docker Compose)

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 2 to start the sevices

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 2

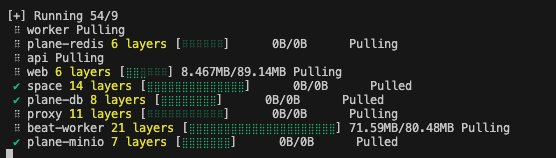

Expect something like this.

Be patient as it might take sometime based on download speed and system configuration. If all goes well, you must see something like this

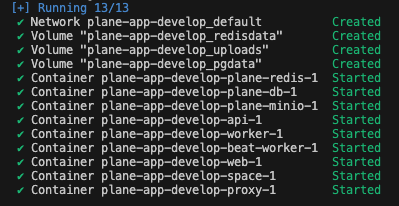

This is the confirmation that all images were downloaded and the services are up & running.

You have successfully self hosted Plane instance. Access the application by going to IP or domain you have configured it (e.g https://plane.example.com:8080 or http://[IP-ADDRESS]:8080)

---

Stopping the Server / Remove Stack

In case you want to make changes to plane.env variables, we suggest you to stop the services before doing that.

Docker Compose

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 3 to stop the sevices

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 3

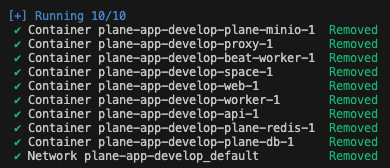

If all goes well, you must see something like this

Docker Swarm

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 2 to stop the sevices

Select an Action you want to perform:
   1) Deploy Stack
   2) Remove Stack
   3) View Stack Status
   4) Redeploy Stack
   5) Upgrade
   6) View Logs
   7) Exit

Action [3]: 2

If all goes well, you will see the confirmation from docker cli

---

Restarting the Server / Redeploy Stack

In case you want to make changes to plane.env variables, without stopping the server or you noticed some abnormalies in services, you can restart the services with RESTART / REDEPLOY option.

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 4 to restart the sevices

Docker Compose

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 4

If all goes well, you must see something like this

Docker Swarm

   1) Deploy Stack
   2) Remove Stack
   3) View Stack Status
   4) Redeploy Stack
   5) Upgrade
   6) View Logs
   7) Exit

Action [3]: 4

If all goes well, you will see the confirmation from docker cli

---

Upgrading Plane Version

It is always advised to keep Plane up to date with the latest release.

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 5 to upgrade the release.

Docker Compose

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 5

By choosing this, it will stop the services and then will download the latest docker-compose.yaml and plane.env.

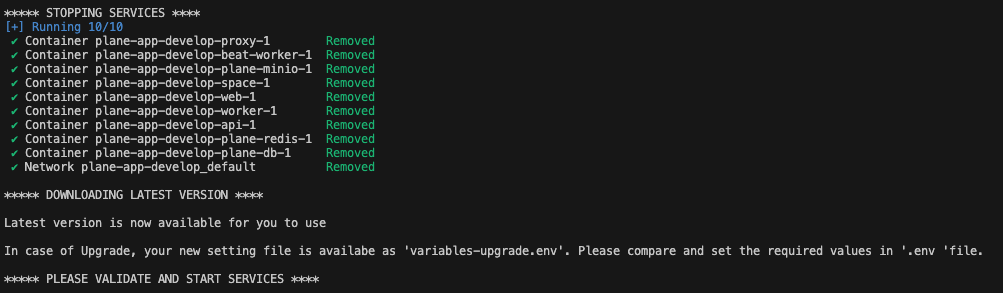

You must expect the below message

Once done, choose 8 to exit from prompt.

It is very important for you to validate the plane.env for the new changes.

Once done with making changes in plane.env file, jump on to Start Server

Docker Swarm

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 5 to upgrade the release.

   1) Deploy Stack
   2) Remove Stack
   3) View Stack Status
   4) Redeploy Stack
   5) Upgrade
   6) View Logs
   7) Exit

Action [3]: 5

By choosing this, it will stop the services and then will download the latest docker-compose.yaml and plane.env.

Once done, choose 7 to exit from prompt.

It is very important for you to validate the plane.env for the new changes.

Once done with making changes in plane.env file, jump on to Redeploy Stack

---

View Logs

There would a time when you might want to check what is happening inside the API, Worker or any other container.

Lets again run the ./setup.sh command. You will again be prompted with the below options.

This time select 6 to view logs.

Docker Compose

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 6

Docker Swarm

   1) Deploy Stack
   2) Remove Stack
   3) View Stack Status
   4) Redeploy Stack
   5) Upgrade
   6) View Logs
   7) Exit

Action [3]: 6

Service Menu Options for Logs

This will further open sub-menu with list of services

Select a Service you want to view the logs for:
   1) Web
   2) Space
   3) API
   4) Worker
   5) Beat-Worker
   6) Migrator
   7) Proxy
   8) Redis
   9) Postgres
   10) Minio
   11) RabbitMQ
   0) Back to Main Menu

Service: 3

Select any of the service to view the logs e.g. 3. Expect something similar to this

api-1  | Waiting for database...
api-1  | Database available!
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | Waiting for database migrations to complete...
api-1  | No migrations Pending. Starting processes ...
api-1  | Instance registered
api-1  | ENABLE_SIGNUP loaded with value from environment variable.
api-1  | ENABLE_EMAIL_PASSWORD loaded with value from environment variable.
api-1  | ENABLE_MAGIC_LINK_LOGIN loaded with value from environment variable.
api-1  | GOOGLE_CLIENT_ID loaded with value from environment variable.
api-1  | GITHUB_CLIENT_ID loaded with value from environment variable.
api-1  | GITHUB_CLIENT_SECRET loaded with value from environment variable.
api-1  | EMAIL_HOST loaded with value from environment variable.
api-1  | EMAIL_HOST_USER loaded with value from environment variable.
api-1  | EMAIL_HOST_PASSWORD loaded with value from environment variable.
api-1  | EMAIL_PORT loaded with value from environment variable.
api-1  | EMAIL_FROM loaded with value from environment variable.
api-1  | EMAIL_USE_TLS loaded with value from environment variable.
api-1  | EMAIL_USE_SSL loaded with value from environment variable.
api-1  | OPENAI_API_KEY loaded with value from environment variable.
api-1  | GPT_ENGINE loaded with value from environment variable.
api-1  | UNSPLASH_ACCESS_KEY loaded with value from environment variable.
api-1  | Checking bucket...
api-1  | Bucket 'uploads' does not exist. Creating bucket...
api-1  | Bucket 'uploads' created successfully.
api-1  | Public read access policy set for bucket 'uploads'.
api-1  | Cache Cleared
api-1  | [2024-05-02 03:56:01 +0000] [1] [INFO] Starting gunicorn 21.2.0
api-1  | [2024-05-02 03:56:01 +0000] [1] [INFO] Listening at: http://0.0.0.0:8000 (1)
api-1  | [2024-05-02 03:56:01 +0000] [1] [INFO] Using worker: uvicorn.workers.UvicornWorker
api-1  | [2024-05-02 03:56:01 +0000] [25] [INFO] Booting worker with pid: 25
api-1  | [2024-05-02 03:56:03 +0000] [25] [INFO] Started server process [25]
api-1  | [2024-05-02 03:56:03 +0000] [25] [INFO] Waiting for application startup.
api-1  | [2024-05-02 03:56:03 +0000] [25] [INFO] ASGI 'lifespan' protocol appears unsupported.
api-1  | [2024-05-02 03:56:03 +0000] [25] [INFO] Application startup complete.

To exit this, use CTRL+C and then you will land on to the main-menu with the list of actions.

Similarly, you can view the logs of other services.

---

Backup Data (Docker Compose)

There would a time when you might want to backup your data from docker volumes to external storage like S3 or drives.

Lets again run the ./setup.sh command. You will again be prompted with the below options. This time select 7 to Backup the data.

Select a Action you want to perform:
   1) Install (x86_64)
   2) Start
   3) Stop
   4) Restart
   5) Upgrade
   6) View Logs
   7) Backup Data
   8) Exit

Action [2]: 7

In response, you can find the backup folder

Backing Up plane-app_pgdata
Backing Up plane-app_redisdata
Backing Up plane-app_uploads

Backup completed successfully. Backup files are stored in /....../plane-app/backup/20240502-1120

---

Restore Data (Docker Compose)

When you want to restore the previously backed-up data, follow the instructions below.

1. Make sure that Plane-CE is installed, started, and then stopped. This ensures that the Docker volumes are created.

2. Download the restore script using the command below. We suggest downloading it in the same folder as setup.sh.

   curl -fsSL -o restore.sh https://github.com/makeplane/plane/releases/latest/download/restore.sh
   chmod +x restore.sh


3. Execute the command below to restore your data.

   ./restore.sh <path to backup folder containing *.tar.gz files>


   As an example, for a backup folder /opt/plane-selfhost/plane-app/backup/20240722-0914, expect the response below:

   --------------------------------------------
    ____  _                          /////////
   |  _ \| | __ _ _ __   ___         /////////
   | |_) | |/ _` | '_ \ / _ \   /////    /////
   |  __/| | (_| | | | |  __/   /////    /////
   |_|   |_|\__,_|_| |_|\___|        ////
                                    ////
   --------------------------------------------
   Project management tool from the future
   --------------------------------------------
   Found /opt/plane-selfhost/plane-app/backup/20240722-0914/pgdata.tar.gz
   .....Restoring plane-app_pgdata
   .....Successfully restored volume plane-app_pgdata from pgdata.tar.gz

   Found /opt/plane-selfhost/plane-app/backup/20240722-0914/redisdata.tar.gz
   .....Restoring plane-app_redisdata
   .....Successfully restored volume plane-app_redisdata from redisdata.tar.gz

   Found /opt/plane-selfhost/plane-app/backup/20240722-0914/uploads.tar.gz
   .....Restoring plane-app_uploads
   .....Successfully restored volume plane-app_uploads from uploads.tar.gz


   Restore completed successfully.


4. Start the Plane instance using ./setup.sh start.

---

Restore for Commercial Air-Gapped (Docker Compose)

When you want to restore the previously backed-up data on Plane Commercial Air-Gapped version, follow the instructions below.

1. Download the restore script using the command below

   curl -fsSL -o restore-airgapped.sh https://github.com/makeplane/plane/releases/latest/download/restore-airgapped.sh
   chmod +x restore-airgapped.sh


2. Copy the backup folder and the restore-airgapped.sh to Commercial Airgapped Edition server

3. Make sure that Plane Commercial (Airgapped) is extracted and ready to get started. In case it is running, you would need to stop that.

4. Execute the command below to restore your data.

   ./restore-airgapped.sh <path to backup folder containing *.tar.gz files>


5. After restoration, you are ready to start Plane Commercial (Airgapped) will all your previously saved data.

---

Upgrading from v0.13.2 to v0.14.x

This is one time activity for users who are upgrading from v0.13.2 to v0.14.0

As there has been significant changes to Self Hosting process, this step mainly covers the data migration from current (v0.13.2) docker volumes from newly created volumes

Before we begin with migration, make sure your v0.14.0 was started and then stopped. This is required to know the newly created docker volume names.

Begin with downloading the migration script using below command

curl -fsSL -o migrate.sh https://raw.githubusercontent.com/makeplane/plane/master/deploy/selfhost/migration-0.13-0.14.sh

chmod +x migrate.sh

Now run the ./migrate.sh command and expect the instructions as below

******************************************************************

This script is solely for the migration purpose only.
This is a 1 time migration of volume data from v0.13.2 => v0.14.x

Assumption:
1. Postgres data volume name ends with _pgdata
2. Minio data volume name ends with _uploads
3. Redis data volume name ends with _redisdata

Any changes to this script can break the migration.

Before you proceed, make sure you run the below command
to know the docker volumes

docker volume ls -q | grep -i "_pgdata"
docker volume ls -q | grep -i "_uploads"
docker volume ls -q | grep -i "_redisdata"

*******************************************************

Given below list of REDIS volumes, identify the prefix of source and destination volumes leaving "_redisdata"
---------------------
plane-app_redisdata
v0132_redisdata

Provide the Source Volume Prefix :

Open another terminal window, and run the mentioned 3 command. This may be different for users who have changed the volume names in their previous setup (v0.13.2)

For every command you must see 2 records something like shown in above example of redisdata

To move forward, you would need PREFIX of old setup and new setup. As per above example, v0132 is the prefix of v0.13.2 and plane-app is the prefix of v0.14.0 setup

Back to original terminal window, Provide the Source Volume Prefix and hit ENTER.

Now you will be prompted to Provide Destination Volume Prefix. Provide the value and hit ENTER

Provide the Source Volume Prefix : v0132
Provide the Destination Volume Prefix : plane-app

In case the suffixes are wrong or the mentioned volumes are not found, you will receive the error shown below. The image below displays an error for source volumes.

In case of successful migration, it will be a silent exit without error.

Now its time to restart v0.14.0 setup.
